EZ Gains® Canyon BTA System

EZ Gains® Canyon Mono Bar BTA System - For Canyon Mono Bar & Gear Grove aero extensions

(Not compatible with the Arm Rest Upgrade Kit)

Designed exclusively for the Canyon Mono Bar System on Triathlon and TT bikes as well as the gear grove aero extensions for road bikes. Please refer to the compatibility images to confirm fitment before purchasing.

After extensive research, development, and real-world testing, we found that no existing solution met our requirements for safety, durability, and aerodynamic efficiency. As a result, EZ Gains created the Canyon Mono Bar BTA System, a purpose-built hydration solution engineered specifically for the Canyon Mono Bar platform.

This system delivers a secure, reliable, and aerodynamic bottle mounting setup, helping you stay hydrated without compromising performance. Every component has been thoroughly tested to ensure strength, stability, and optimal aerodynamic integration.

Please review the available scientific data and fitment information to determine the configuration best suited to your riding position and hydration needs.

Choose your preferred setup and get ready to stay hydrated and ride faster.

Single bottle setup Included Components:

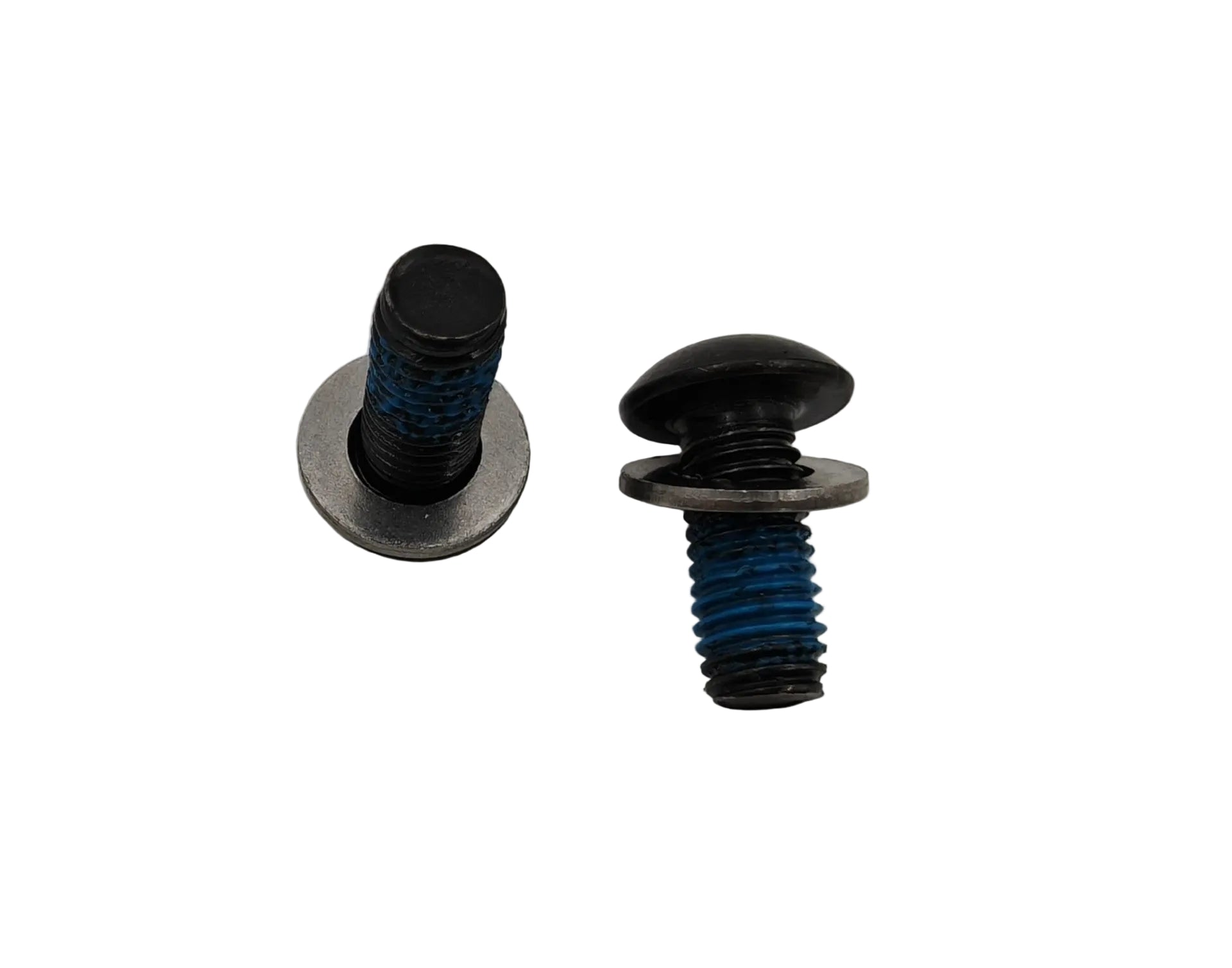

• BTA EZ Fixing Plate (130 mm) including 2x 12mm thread locked fixing bolts
• BTA Bullet (choice of standard or computer mount)
• Tri Rig kappa cage
• X1 750ml Bottles
• choice to add bta elevator

Double bottle setup Included Components

• BTA EZ Fixing Plate (130 mm) including 2x12mm thread locked fixing bolts
• Multi Bottle Rail
• BTA Bullet ( choice of standard or computer mount )
• Tri Rig kappa  Cage
• Tri Rig Under cage
• X2 750ml Bottles
• choice to add Bta Elevator

Fixing Procedure Single bottle

Remove the two canyon bolts from the flat top of the bars.

Adjust bars to your desired length/reach.

Place the Ez Fixing plate on the flat top of the bars and secure with the included 2x12mm black thread locked bolts and washers.

Place the Bta Bullet and Kappa cage on top of the Ez fixing plate then secure using the 2x10mm silver bolts included with the plate.

Fixing Procedure double bottle

Remove the two canyon bolts from the flat top of the bars.

Adjust bars to your desired length/reach.

Place the Ez Fixing plate on the flat top of the bars and secure with the included 2x12mm black thread locked bolts and washers.

Secure the kappa under cage to the underside of the multi bottle rail at the very end ( the end with 4x threaded holes ) and secure using the bolts included with the cage.

Place the multi bottle rail onto the Ez fixing plate and secure using the 2x10mm silver bolts included with the plate.

Place the Bta Bullet and Kappa cage on top of the Ez fixing plate then secure using the bolts included with the cage.

All these parts can be ordered on BTA Tri-Rig Collection

Warranty:
All products are backed by a 12-month manufacturer's warranty.

Read our science page for more information on the BTA System here.
